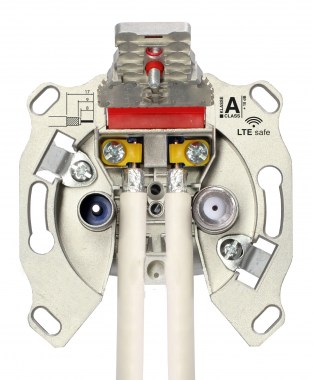

GUT MMF 20

Modem trunkline wall outlet for multimedia, CATV and data, 2 outputs

  • improved EMC performance; Class A + 10 dB (LTE safe)
  • high Einstrahlfestigkeit über die Rundfunkbuchse durch UKW-Bandpassfilter
  • quick and safe connection for different cable diameters
  • isolation according EN 50083 while mantaining low loss of channels S2 and S3
  • cable bend protection by rounded chassis design
  • high isolation between data port and TV/Radio port prevent interferences of the TV/Radio reception caused by the cable modem
  • connection attenuation approx. 20 dB
  • F-jack for modem (5 - 1800 MHz)
  • IEC marks for TV (85 - 862 MHz)
  • certified by Vodafone Germany

EAN-Code: 4026187198671 | Order number: 00541224

Related keywords: 541224; Modem trunkline wall outlet; socket for multimedia, multimedia socket; CATV and data, 2 outputs; Vodafone certified
