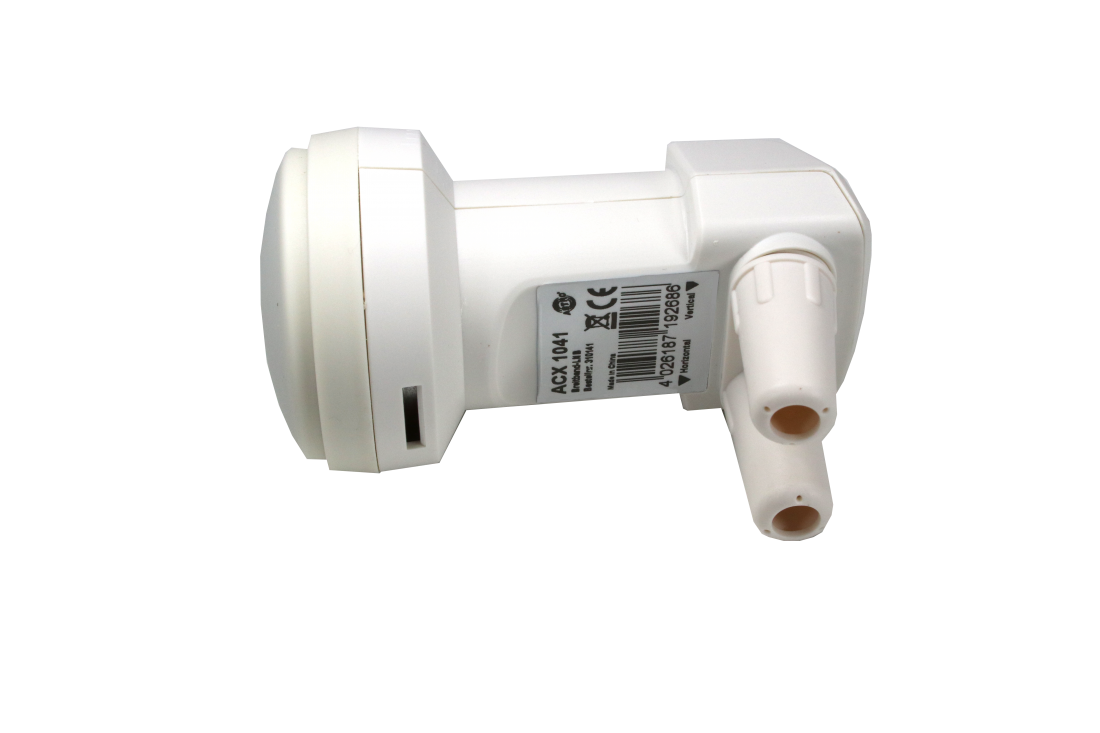

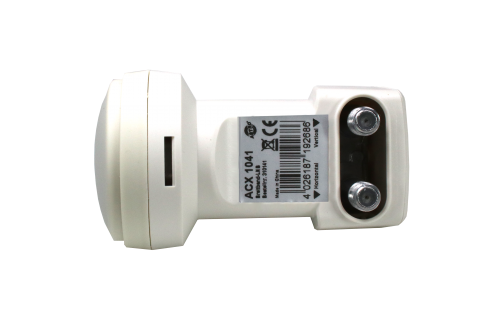

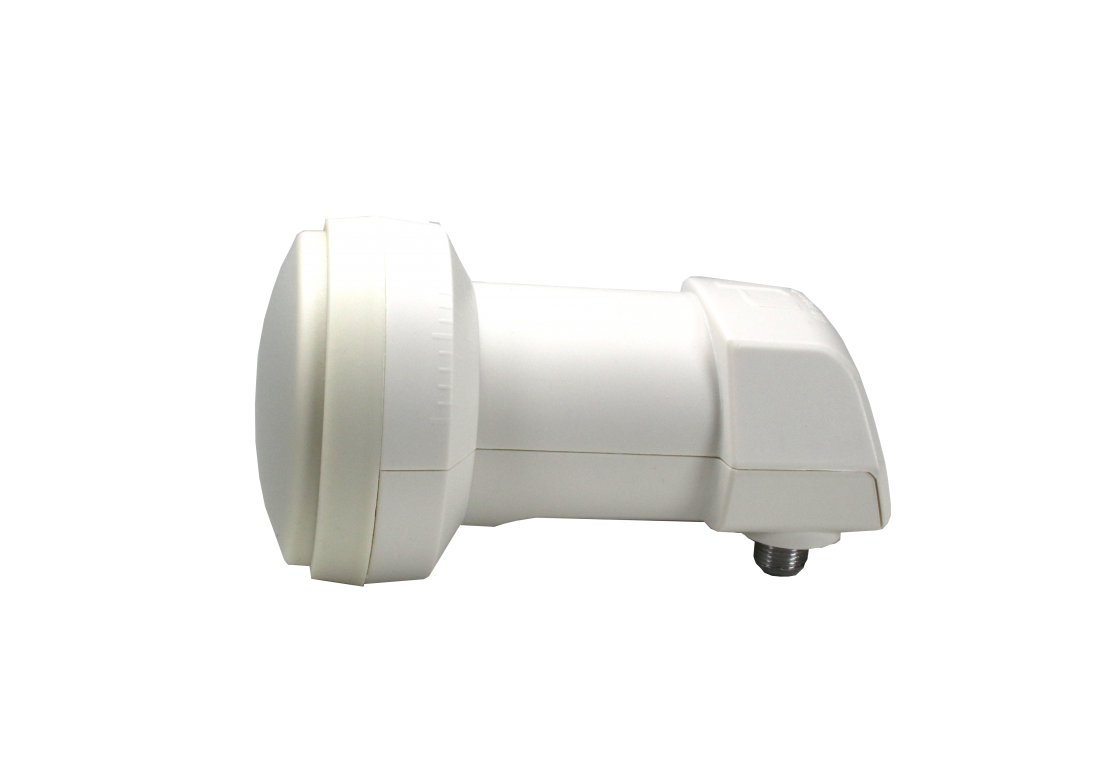

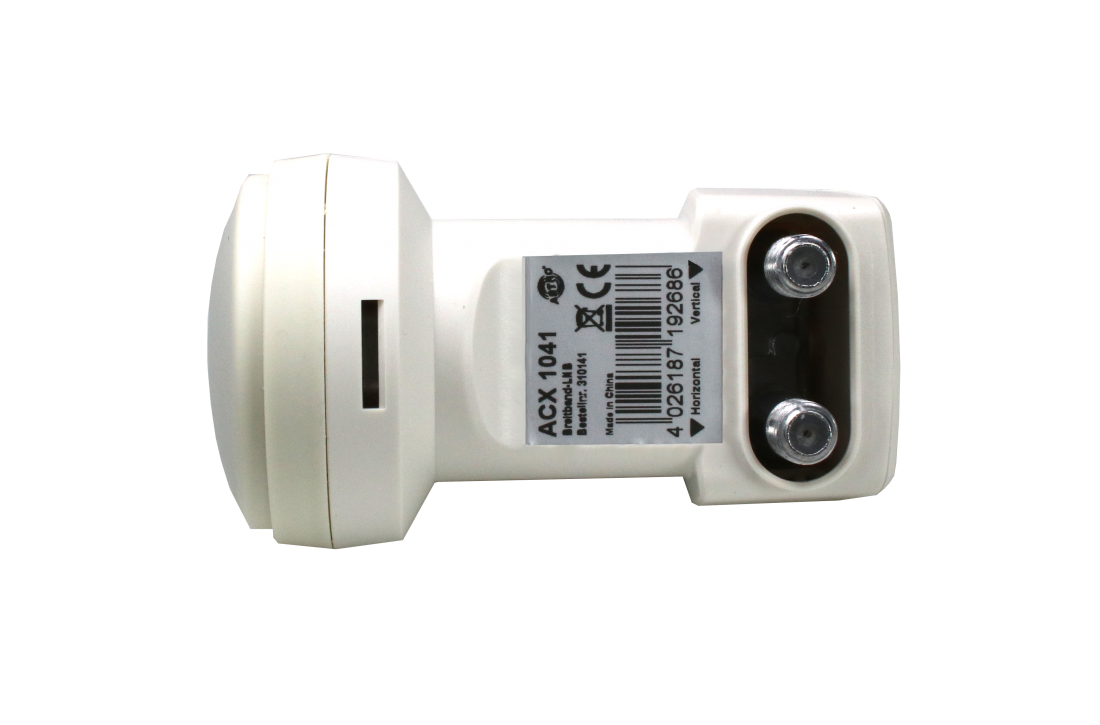

ACX 1041

Wideband LNB

  • Wideband LNB for use with the optical transmitter SBF TX 1310 and the Single-cable Converters SEV 581, 582, 584, 588, 984, 988, 1784 and 1788 as well as the wideband to quatro cdonverter SEV WQ
  • horizontal and vertical band on one oscillator frequency
  • Oscillator frequency 10.41 GHz
  • suitable for AMS / SAM multiswitches via the Wideband Quatro converter SEV WQ
  • 40 mm LNB mounting
  • all LNC of the ACX series are verifyed for the use with ASP and AST parabolic reflectors

EAN-Code: 4026187240714 | Order number: 00310141

Optical components Active components
Data sheet ACX 1041 DE Data sheet ACX 1041 EN Declaration of Conformity
Product is combinable with

Related keywords: 310141, Wideband LNB, ACX 1041
