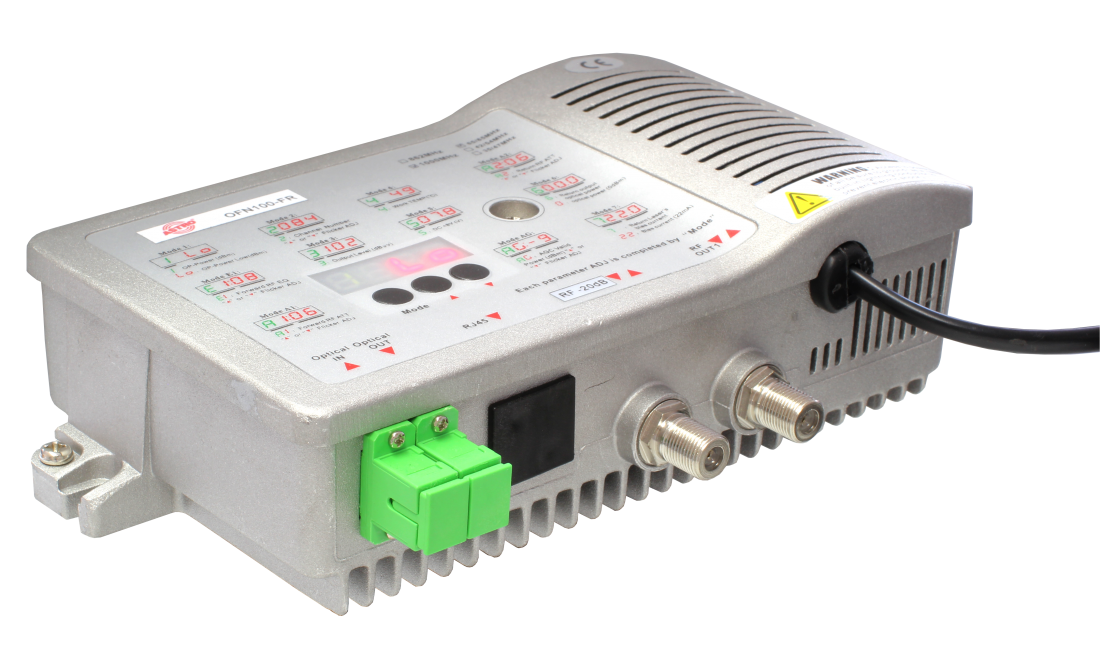

OFN100-FR-1510
Optical CATV Node
- FTTB/FTTC optical Node
- Downstream reception of CATV signals
- integrated 0 dBm / 1510 nm upstream transmitter
- optical input power -9 ... +2 dBm
- nominal output level >102 dBµV (@ OMI 3,5%)
- electronically adjustable attenuation and equalizer
- RF frequency range 5-65 MHz / 87-1006 MHz
- operational voltage 150 - 265 VAC
- optical connectors SC/APC
EAN-Code: 4026187194291 | Order number: 00212141
| Type of Node | Mini Node |
|---|---|
| Return path | With return path |
| Power supplie(s) | One PSU |
Data sheet OFN100 series DE
Data sheet OFN100 series EN
Block diagram OFN100-FR
Manual OFN100 EN
Manual OFN100 DE
Operating instructions for our professional system technology can be found in the ASTRO Expert section. Please register or log in.
Product is combinable with
Related keywords: 212141, optical Node, Fibre Node, CATV Node, FTTB, FTTC, 1510 nm, OFN100-FR-1510, OFN100 FR 1510
