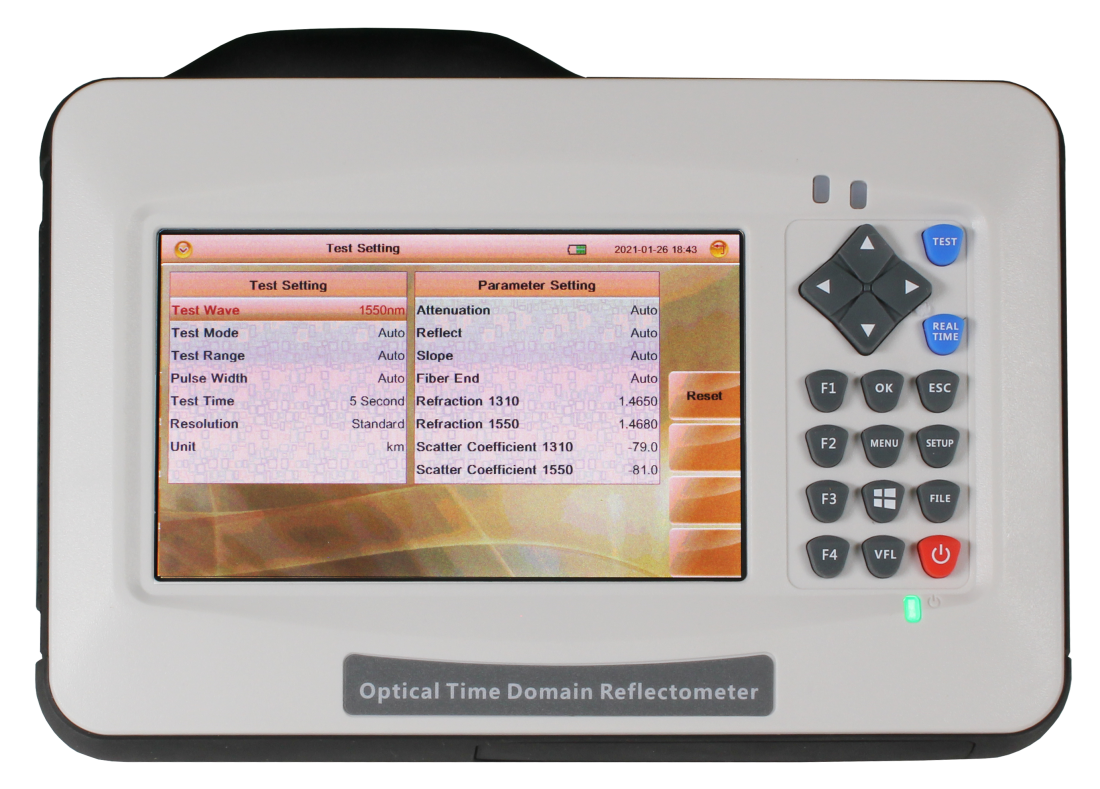

AOTDR-26-VFL-FC-PM
Optical Reflectometer
- Mini OTDR
- wavelength 1310/1550 nm
- range 26 dBm/24 dBm
- dead zone 1/6 m
- pulse width 3 ns, 5 ns, 10 ns, 20 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1 μs, 2 μs, 5 μs, 10 μs, 20 μs
- 4 GB internal storage for up to 40.000 measurements
- 3× USB port（2 x USB A Type,1x Micro-USB)
- 5 inch TFT display (touch screen)
- 7.4 V/3300 mAh lithium battery, working time about 6 h / charging time 3,5 h
- operating temperature range -5 .. +40 °C
- FC/UPC connector
- visual fault locater (650 nm)
- optical power meter (-60 ..+5 dBm, /850 /1300 /1310 /1490 /1550 /1625 /1650 nm)
EAN-Code: 4026187210403 | Order number: 00212204
| Type of product | Accessories |
|---|---|
| Type of accessory | Measuring device |
Data sheet AOTDR-26-VFL-FC-PM DE
Data sheet AOTDR-26-VFL-FC-PM EN
Product Newsflyer AOTDR-26-VFL-FC-PM DE
Product Newsflyer AOTDR-26-VFL-FC-PM EN
Operating manual AOTDR DE
Operating manual AOTDR EN
Operating instructions for our professional system technology can be found in the ASTRO Expert section. Please register or log in.
Product is combinable with
Related keywords: 212204, Optical Reflectometer, Optical Meter, AOTDR-26-VFL-FC-PM, AOTDR 26 VFL FC PM
